- Product Code: MIKROE-2660
- MPN: MIKROE-2660

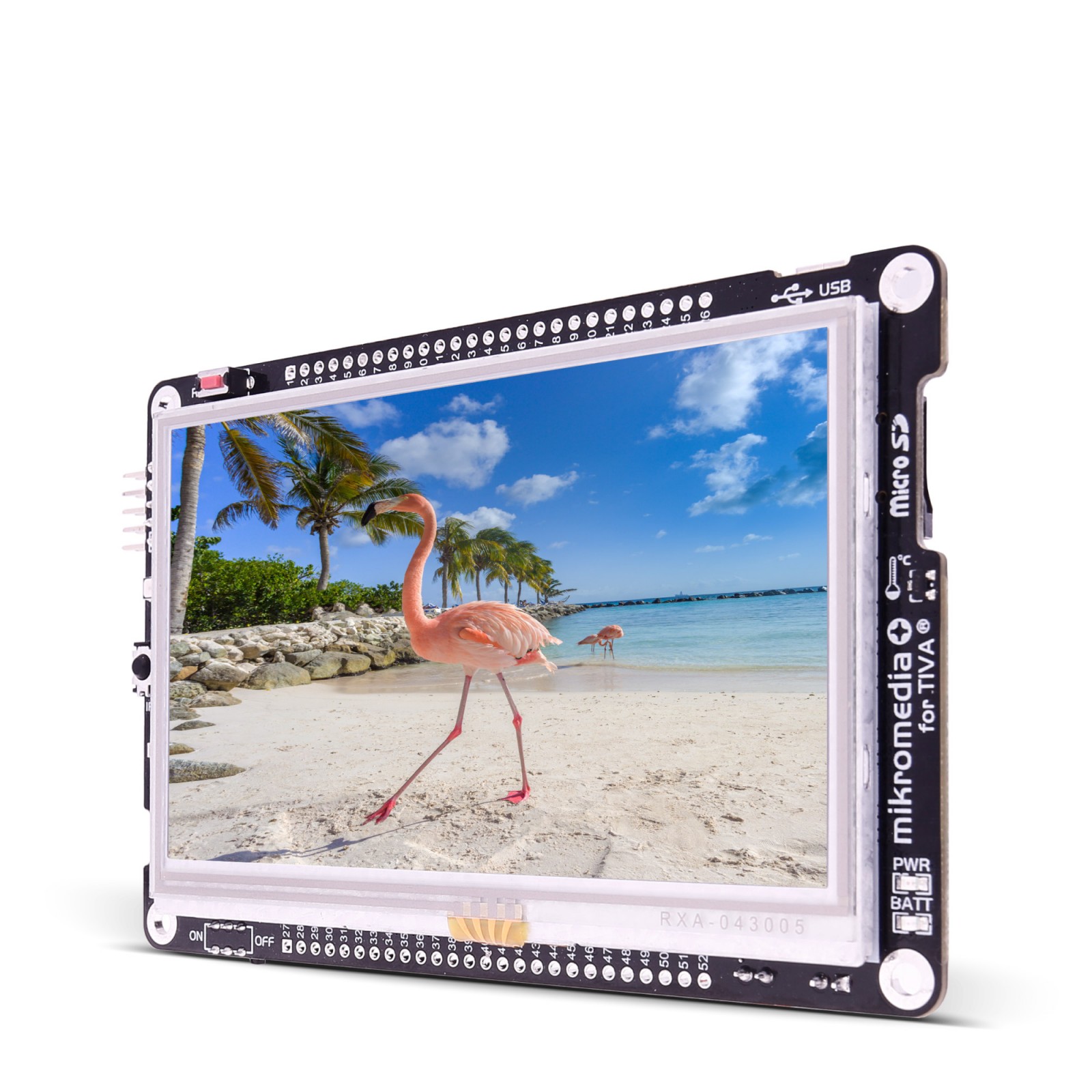

mikromedia Plus for TIVA
Start building your applications with intuitive, user-friendly menus and dashboards using powerful Texas Instruments TM4C123GH6PGEI microcontroller. This board provides a compact high-quality multimedia development platform for the ARM® CortexTM-M4 family device.
Fast and furious
Powerful TM4C123GH6PGEI microcontroller from ARM® CortexTM-M4 family. The 80 MHz processor core, 256 KB of Flash memory, and 100 DMIPS performance are only some of the features on this MCU.
Large 4.3" Touch Screen
See the big picture. A 4.3” touchscreen driven by FT810 graphics controller from FTDI delivers crystal sharp image in 480x272px resolution.
2.4GHz RF transceiver
mikromedia PLUS for TIVA features an RF transceiver chip with 2.4GHz chip antenna. Drive it with simple SPI commands. It that easy.
A whole lot of modules
Board has it all: USB connector, temperature sensor, PIN photosensor, IR receiver, battery charger, MP3 codec, audio speaker, etc.
What's on the board
Get to know your board even before you buy it. Become a mikromedia geek.
Check out what the mikromedia Plus for TIVA has to offer. Beauty in the front and functionality in the back. You won't be able to resist the super sleek design.
We singled out some of the main features. For a more detailed explanation of each one, see the manual.
Onboard microcontroller is preprogrammed with fast USB HID bootloader, so it’s ready to work right out of the box. You don’t have to spend a dollar more on programmers. If you need a debugger use mikroProg for Tiva.
|Applications||Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment.|
|Programming||Preprogrammed with fast USB HID bootloader.|
|Expandability||Two 1x26 headers, mikromedia standard pinout|
|Input Voltage||5V (Via USB) or 5-12V DC (via external adapter)|
GUI design with Visual TFT
Easily create fantastic colourful graphical user interfaces (GUI) for mikromedia in Visual TFT software. Even total beginners will be able to create amazing applications.
- Damage resistant protective box
- mikromedia PLUS for TIVA board in antistatic bag
- USB cable, microSD card 2GB and 3 headers (2x5 and a pair of 1x26)
