- Product Code: MIKROE-1575
- MPN: MIKROE-1575

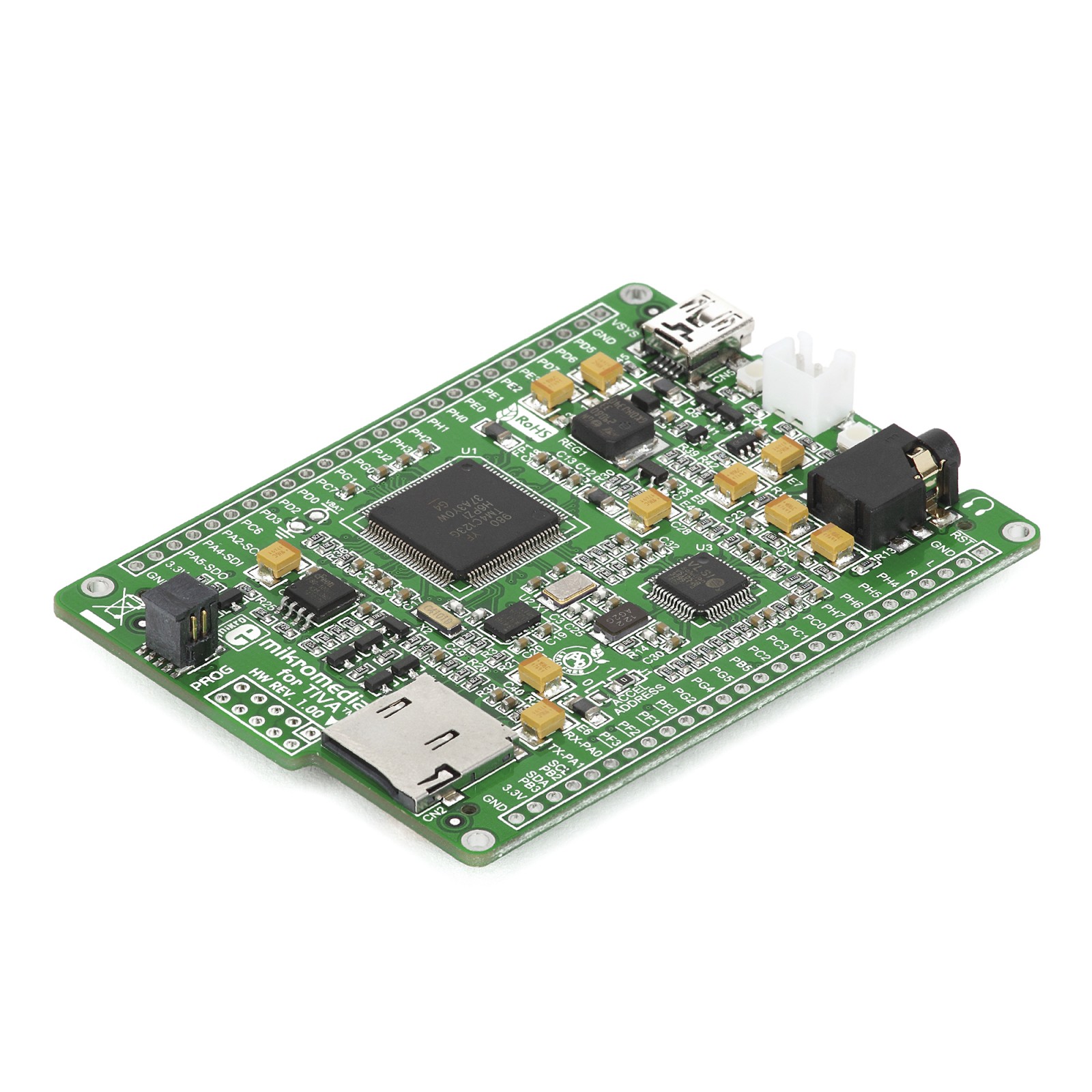

Start building your first applications with intuitive, user-friendly menus and dashboards using Ti Tiva ARM Cortex-M4 microcontroller. This board provides a compact high-quality multimedia development platform for TM4C123GH6PZ device.
Highlights. Large 320x240 TFT Color Display with Touch Screen and Stereo MP3 Codec chip with great performance give you true power to build GUI-centric embedded devices. Charge your batteries directly from USB port. No additional electronics, or expensive adapters. You can save pictures, sounds and other media files on microSD memory card and 8Mbit Serial Flash Memory and use it in your application. On-board ADXL345 Digital Accelerometer allows you to measure acceleration.
Programming. On-board microcontroller is preprogrammed with fast USB HID bootloader, so it’s ready to work right out of the box. You don’t have to spend a dollar more on programmers. If you need a debugger use mikroProg™ for Tiva™.
GUI design with Visual TFT. Easily create fantastic colourful graphical user interfaces (GUI) for mikromedia in Visual TFT software. Even total beginners will be able to create amazing applications.
|Applications||Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment.|
|MCU speed||100 DMIPS, 80 MHz, 1.25 DMIPS/MHz|
|MCU Memory||256 KB of Flash, 32 KB of SRAM|
|Programming||Preprogrammed with fast USB HID bootloader. Also features mikroProg for PIC, dsPIC and PIC32 connector.|
|Storage||8 Mbit Serial Flash, microSD card slot|
|Sound and Audio||VS1053 MPEG audio decoder|
|Peripherals include||USB connector, Accelerometer, Battery Charger|
|Expandability||Two 1x26 headers, mikromedia standard pinout|
|Input Voltage||5V (via USB)|
- Do you have any questions concerning this product?
- mikromedia for Tiva™ C Series USB Bootloader
- mikromedia for Tiva™ C Series Examples
- mikromedia for Tiva™ C Series User Manual
- mikromedia for Tiva™ C Series Schematic
- mikromedia for Tiva™ C Series Pinout
- mikromedia for Tiva™ AutoCad File
