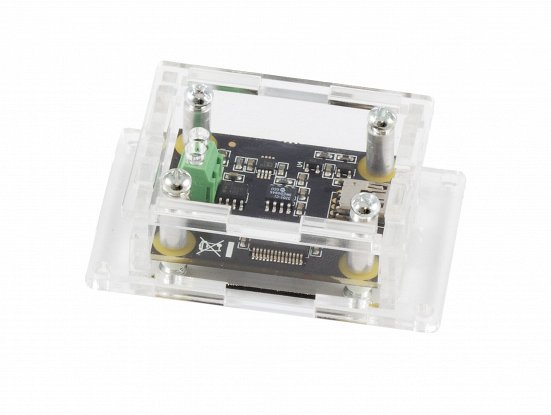

PhidgetTemperatureSensor 1-Input

Please inform me as soon as the product is available again.
₹ 6,039.00 *

Prices incl. GST

Out of Stock.

  • Phidgets-1051_2B
  • 1051_2B
  Connect a thermocouple to this board to measure the temperature of an object or area....more
Product information "PhidgetTemperatureSensor 1-Input"


Connect a thermocouple to this board to measure the temperature of an object or area. Plugs directly into a USB port.

Thermocouples are widely used to measure extreme temperatures impossible to measure with other types of sensors.

J, K, E and T thermocouples are directly supported in the library and return the measured temperature in °C.

It is possible to interface other thermocouple types by converting the measured potential returned by the Temperature Sensor into Celsius using the appropriate tables.

Very long thermocouples are okay (even 100m), but if there is measurement stability issues or USB resets, ferrite beads can be added to the thermocouple wire close to the Phidget Temperature Sensor.

Product Specifications

API Object Name TemperatureSensor
Controlled By USB (Mini-USB)
Number of Thermocouple Inputs 1
Thermocouple Input
Temperature Update Rate 25 samples/s
Ambient Temperature Error Max ± 0.5 °C
Thermocouple Error Max (K-Type) ± 2 °C
Thermocouple Voltage Resolution 24.2 μV DC
Thermocouple Temperature Resolution (K-Type) 0.62 °C
Electrical Properties
Current Consumption Max 25 mA
USB Voltage Min 4.8 V DC
USB Voltage Max 5.3 V DC
USB Speed Full Speed
Physical Properties
Recommended Wire Size 16 - 26 AWG
Operating Temperature Min 0 °C
Operating Temperature Max 70 °C
