- Product Code: Seeed-101020583
- MPN: 101020583
The Grove - Step Counter(BMA456) is based on BMA456, which is an exetremely small, triaxial, low-g high performance accelerations module. Thanks to the special algorithm of BOSCH, we made this module a portable pedometer.
Relaiable, cost-effective, on top of that, it's very easy to use, you can easily add this plug and play module on your wearable devices.
Features
-
On chip FIFO
-
Ultra-low power
-
On-chip interrupt
-
Programable functionality
Typical Application
-
Applications with height constrains
-
Plug and Play Step-Counter solution with watermark functionality
-
Fitness applications / Activity Tracking
-
Power management for wearable applications
-
Display on/off and profile switching
-
User interface without hardware buttons
-
E-compass tilt compensation and data synchronization
-
High performance angle measurements

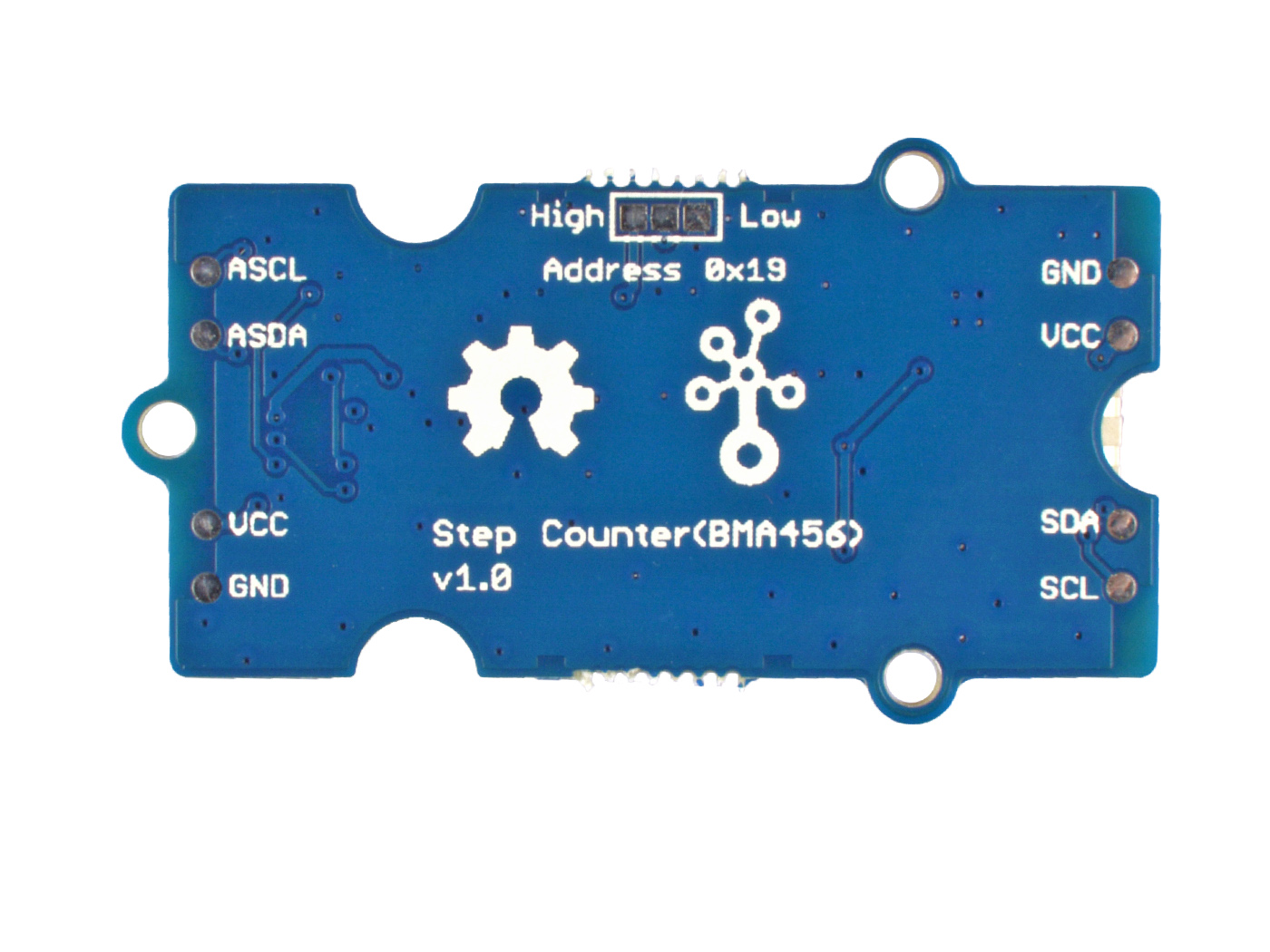

Pin Out
Technical Details
Dimensions | 40mm x 20mm x 7mm |
Battery | Exclude |
Operating Voltage | 3.3V / 5V |
Acceleration Range | ±2g, ±4g, ±8g, ±16g |
Sensitivity | 16384 @±2g 8192 @±4g 4096 @±8g 2048 @±16g |
Interface | I2C |
I2C Address | 0x19(default) / 0x18(optional) |
Part List

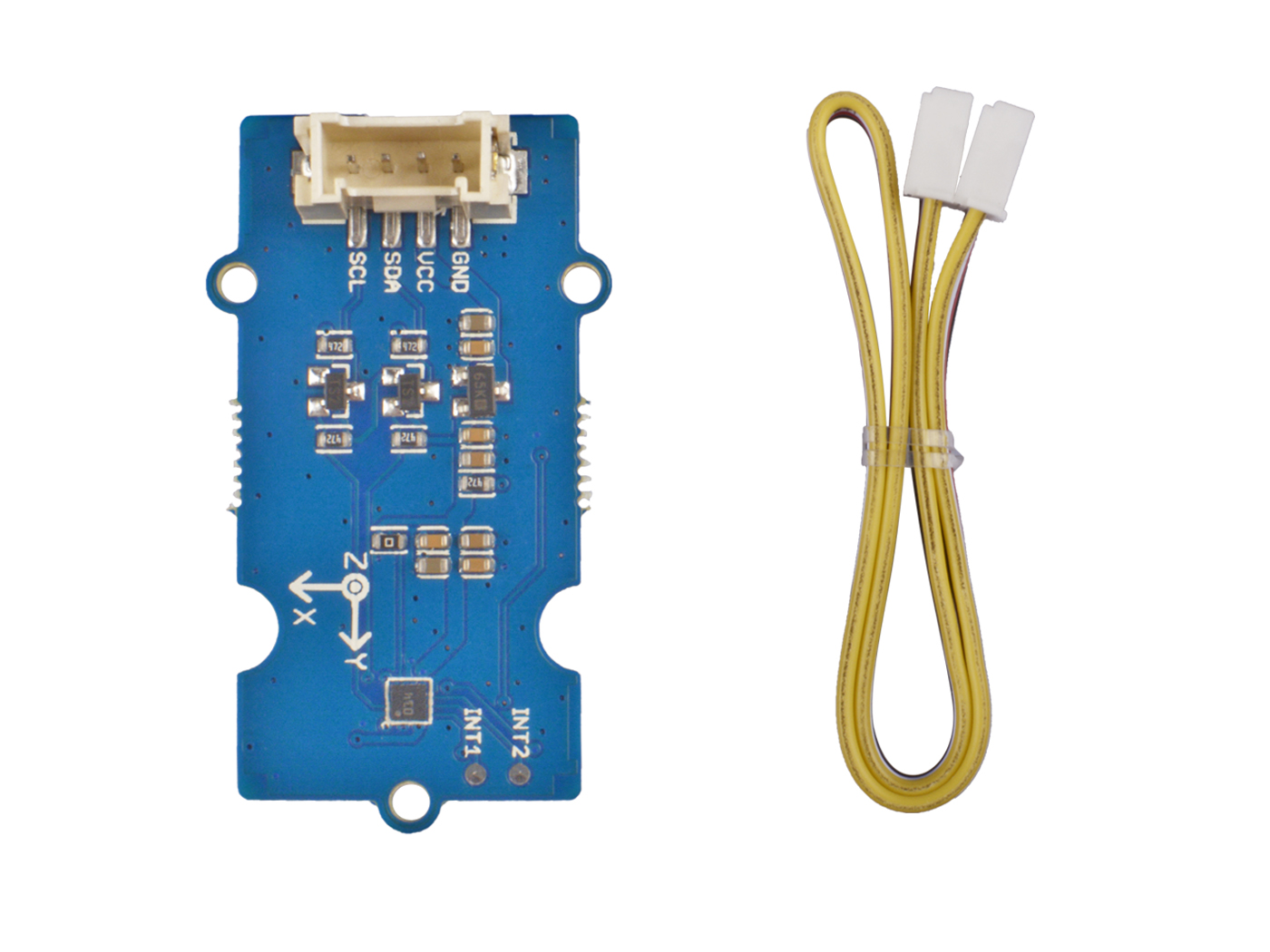

Grove - Step Counter(BMA456) | 1 |
Grove Cable | 1 |
