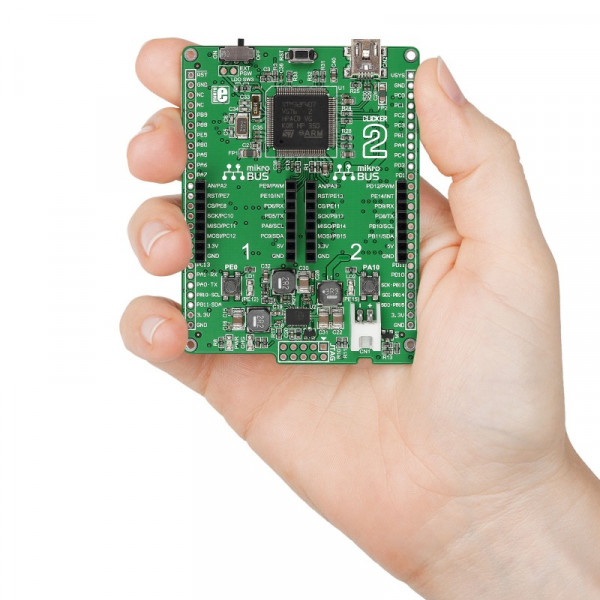

clicker 2 for STM32 is a battery-powered click™ board two-seater. Inventing and putting together fully-functional standalone gadgets is now just 1% perspiration, and 99% inspiration. Its powered by 32-bit ARM® Cortex™-M4 STM32F407VGT6 MCU.
Thousands of possibilities with click boards

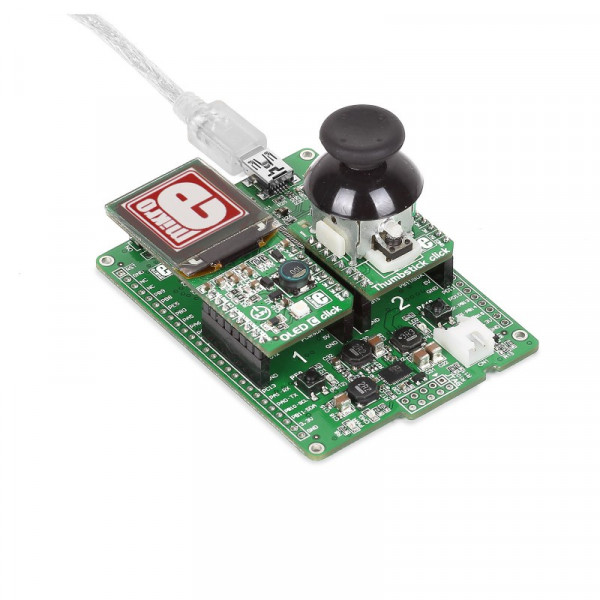

With two mikroBUS™ sockets on clicker 2, you can take advantage of the huge potential of click™ boards, the constantly expanding range of over 200 add-on boards. Blend different functionalities together and come up with new and original inventions. That’s just two clicks and your project is half-way done. Go ahead and play with a few ideas right away.
To make your prototyping experience as convenient as possible, clicker 2 for STM32 is preprogrammed with a USB HID bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for STM32 connector enables programming through external programmer/debugger.
clicker 2 for STM32 features LTC®3586, a highly integrated power management and battery charger IC that includes a current limited switching PowerPath manager. LTC®3586 also enables battery charging over a USB connection.
You can supply power to the board with a micro USB cable provided in the package. On-board voltage regulators provide the appropriate voltage levels to each component on the board.
|Applications||This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas|
|MCU speed||210 DMIPS, 1.25 DMIPS/MHz, 168MHz|
|MCU Memory||1MB of Flash, 192+4 Kbytes of SRAM|
|Programming||Preprogrammed with USB HID bootloader. Also features mikroProg for STM32 connector|
|Key Features||LTC®3586 - power management and battery charger IC|

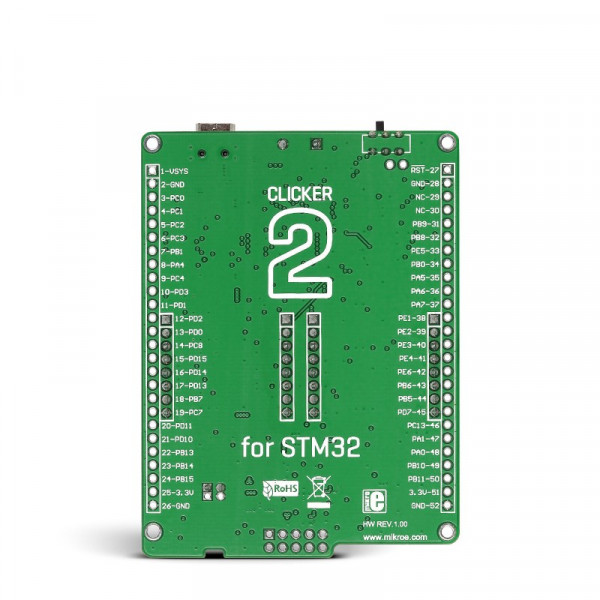

|Expandability||2 x mikroBUS sockets, two 1x26 mikromedia-compatible headers|
|Input Voltage||5V (via USB) or Li-Polymer Battery (3.7V)|
